Top 5 compared
The best light boxes for tracing
An evenly lit surface for tracing drawings, practising hand lettering and seeing diamond painting symbols clearly.
As an Amazon Associate we earn from qualifying purchases. It costs you nothing extra. How this works
The top 5 at a glance
A light box turns ordinary paper into tracing paper: lay a sketch or a lettering guide on top, switch it on and the lines show straight through. The same glow makes the tiny symbols on a diamond painting canvas easier to read and helps when weeding vinyl. Tracing a pencil drawing takes far less light than reading a dark canvas, so the brightness a pad needs depends on the craft.
Every pad here runs on USB, from a laptop or a phone charger; the TOHETO also has a built-in battery. They all dim, so a bright one can always be turned down, though a plug isn’t always in the box.
What matters
- A lux figure from the maker, to match the pad to the craft.
- Dimming that stays put, by a button lock or a memory.
- Magnets or a clip to hold the sheet still.

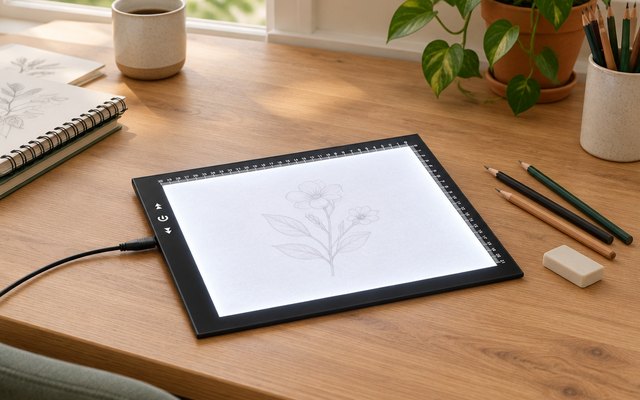

#1HSK A4 LED Tracing Light Pad
£20–£30
A thin, aluminium-framed pad that lights the page evenly at up to 6,000 lux, with up and down buttons for the brightness and a lock that stops a stray elbow changing it mid-trace. A USB plug, a clip and a carry bag come in the box.
What owners say: Owners rate how bright and even the light is, with plenty of levels to choose from, and find it a real help for diamond painting and drawing.
A closer look: To lock the brightness, hold the up and down buttons together for three seconds until the light flashes once; the same again unlocks it. Slip it back into the carry bag between sessions to keep the acrylic face free of scratches, and use the clip to hold a sheet still while tracing.
- Lock stops stray brightness changes
- Clip and carry bag included
- Aluminium frame
- Flicker-free
Best for: Tracing and diamond painting
- Overall size
- 34.4 x 25cm
- Max brightness (maker’s)
- 6,000 lux
- Dimming
- Up/down buttons
- Power
- USB + plug
- Thickness
- 6mm
#2TOHETO A4 Rechargeable Light Pad (A4-D50)
£20–£30
Runs for up to five hours on its built-in battery, so it can move to the kitchen table, the sofa or a craft group with no cable trailing, and it keeps working while it charges. Three light colours, six brightness steps, or a smooth dim by holding the button. For working at a desk, the plug-in HSK at #1 does the same job, with a much longer record behind it.
What owners say: Owners find the battery lasts well between charges, and like having both the brightness levels and the light colours to play with.
A closer look: It remembers the last brightness used, so it comes back on as it was left. Physical keys rather than a touch panel mean a hand resting on the edge won’t switch it off or dim it, which matters when weeding vinyl or placing drills on a diamond canvas for a long stretch.
- Remembers the last brightness
- Physical keys, no touch panel
- White, warm and mixed light
- Works while it charges
Best for: Crafting away from a socket
- Overall size
- 34.8 x 25.9cm
- Max brightness (maker’s)
- 8,860 lux
- Dimming
- 6 levels or stepless
- Power
- Battery or USB-C
- Thickness
- 8mm

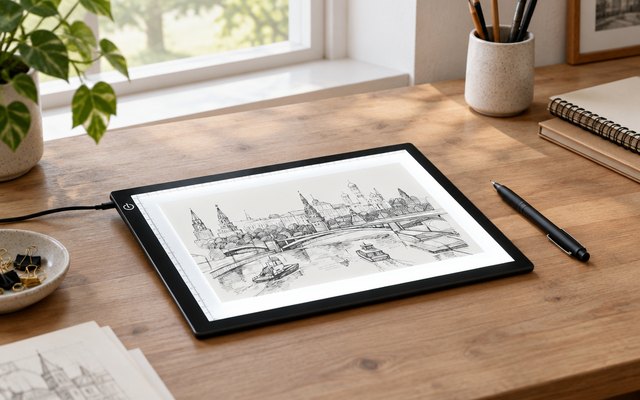

#3HUION L4S LED Light Pad
£30–£50
From Huion, the Shenzhen maker of drawing tablets founded in 2011: a 5.1mm pad weighing about 600g, with an even light that dims smoothly as the switch is held, for tracing and sketching wherever the drawing pad goes.
What owners say: Owners say the light shows through cartridge paper and even thick watercolour paper, and like being able to turn it right down.
Heads up: There’s no plug in the box: it runs from a laptop’s USB port or any USB phone charger.
A closer look: At its brightest it gives 1,100 lux, gentler than the diamond-painting pads here, which suits tracing a pencil sketch for inking or working through animation frames. Being so thin and light, it’s happiest flat on a table rather than balanced on a lap, and it slides into a large portfolio with the drawings.
- Weighs about 600g
- Slides into a large portfolio
- Even light across the pad
Best for: Sketching and inking
- Overall size
- 36 x 27cm
- Max brightness (maker’s)
- 1,100 lux
- Dimming
- Stepless
- Power
- USB cable
- Thickness
- 5.1mm

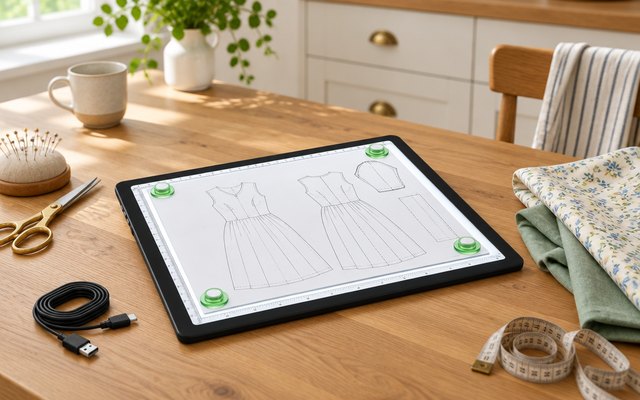

#4Phylosal Magnetic A4 Light Pad
£10–£20
Four magnets clamp a diamond canvas, embroidery pattern or tracing sheet to the surface, and side buttons (not a touch panel) switch between white, natural and warm light, each with six brightness steps.
What owners say: Owners use it for embroidery and stained-glass patterns as well as illustration, and the magnets earn particular praise; the one let-down for some is that it has no battery and must stay plugged in.
A closer look: There’s no battery, so it works plugged in, from a USB plug or a laptop through the USB-C cable in the box. The centimetre and inch scales along the edges help when lining up a pattern or measuring the margins for a page of lettering.
- Centimetre and inch edge scales
- Side buttons, no touch panel
Best for: Holding patterns in place
- Overall size
- 35.2 x 25.4cm
- Max brightness (maker’s)
- 11,000 lux
- Dimming
- 6 levels, 3 colours
- Power
- USB-C cable
- Thickness
- 9mm
#5ARTDOT A4 Light Pad for Diamond Painting
Under £10
Made with diamond painting in mind: three brightness levels make the tiny symbols on a canvas easier to read, and ARTDOT packs a stand to prop it at an angle and a few tools in with the pad.
What owners say: Diamond painters like the three light settings and the tools that come with it, which help on bigger canvases, though a few pads stop working early and the stand can wobble.
A closer look: Start low and step up only as far as the canvas needs: ARTDOT keeps the brightest setting for dark canvases. The 5ft USB lead reaches a laptop or a plug across the table, and at under 4mm thick the pad barely raises the canvas off the work surface.
- Stand and tools included
- Brightest setting for dark canvases
Best for: Reading tiny canvas symbols
- Overall size
- 33.5 x 23.5cm
- Max brightness (maker’s)
- 1,500 lux
- Dimming
- 3 levels
- Power
- USB cable
- Thickness
- 3.8mm
How they compare
Swipe sideways or rotate device to see all 5.
| Feature | #1HSK A4 | #2TOHETO rechargeable | #3HUION L4S | #4Phylosal magnetic | #5ARTDOT A4 |
|---|---|---|---|---|---|
| Best overall | Best cordless | Best for drawing | Best for patterns | Best budget | |
| Picked Rating | 9.2 | 9.5 | 9.1 | 9.1 | 8.8 |
| Price | £20–£30 | £20–£30 | £30–£50 | £10–£20 | Under £10 |
| Overall size | 34.4 x 25cm | 34.8 x 25.9cm | 36 x 27cm | 35.2 x 25.4cm | 33.5 x 23.5cm |
| Max brightness (maker’s) | 6,000 lux | 8,860 lux | 1,100 lux | 11,000 lux | 1,500 lux |
| Dimming | Up/down buttons | 6 levels or stepless | Stepless | 6 levels, 3 colours | 3 levels |
| Power | USB + plug | Battery or USB-C | USB cable | USB-C cable | USB cable |
| Thickness | 6mm | 8mm | 5.1mm | 9mm | 3.8mm |
| Best for | Tracing and diamond painting | Crafting away from a socket | Sketching and inking | Holding patterns in place | Reading tiny canvas symbols |
| Buy now | Amazon | Amazon | Amazon | Amazon | Amazon |
